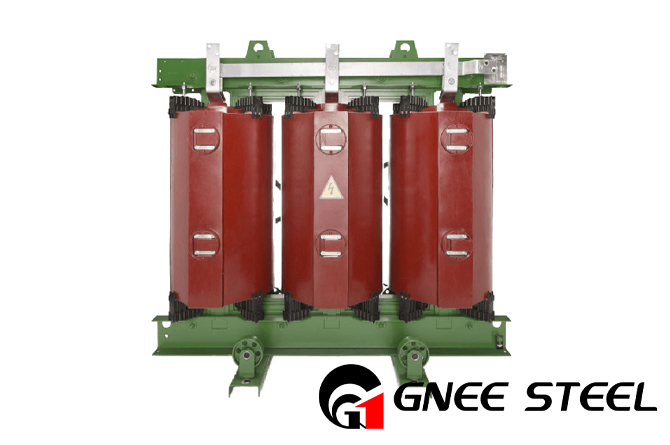

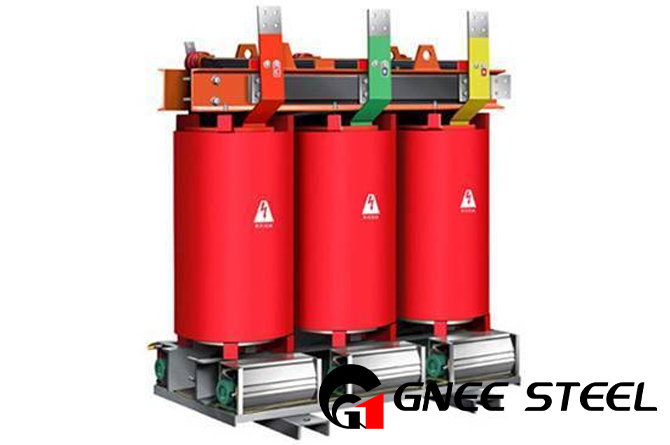

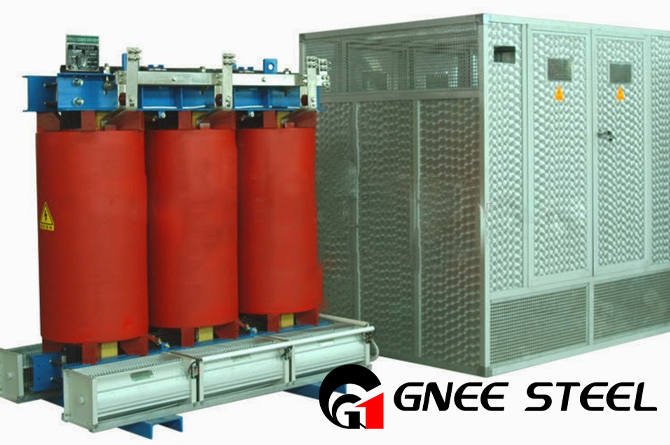

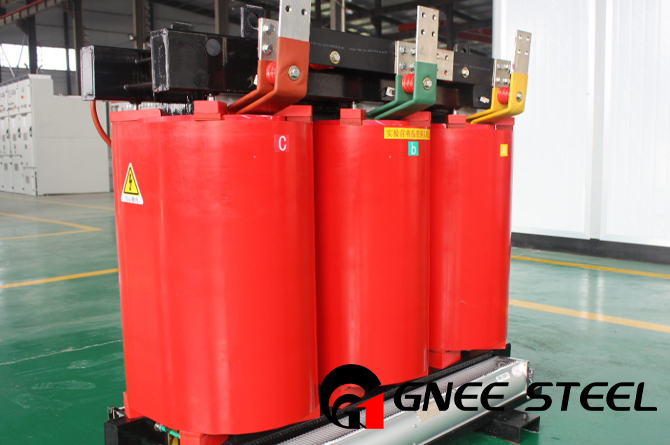

Features
1. Low loss, low partial discharge, low noise, strong heat dissipation, and can be operated at 120% rated load under forced air cooling.
2. It has good moisture-proof performance and can operate normally under 100% humidity. It can be put into operation without pre-drying after shutdown.
3. It is safe to operate, fire-resistant, non-polluting, and can be installed directly in the load center.
4. Equipped with a complete temperature protection control system to provide reliable protection for the safe operation of the transformer.
5. Maintenance-free, simple installation and low overall operating cost.
6. According to the operation research of the products that have been put into operation, the reliability of the products has reached the international advanced level.
| Rated Capacity | 500kVA |
| High Voltage | 10/11kV |
| Low Voltage | 0.4kV |
| Impedance Voltage | 4% |
| No-load Loss | 1.16kW |
| Load Loss | 4.88kW |
| No-load Current | 0.6% |
| Frequency | 50/60Hz |
| Connection Method | Yyn0/Dyn11 |
| Insulating Level | F/F |
| Noise | 46dB |
| Material | aluminum/copper |
| Size | 1255x860x1195mm |
| Weight | 1945kg |
