The single-phase pad-mounted transformer rated capacity is 15-250 kVA. Single-phase Pad-mounted Transformer is generally used in places where single-phase power is required for civil use, such as household appliances, etc., and its capacity is relatively smaller than a three-phase pad-mounted transformer.

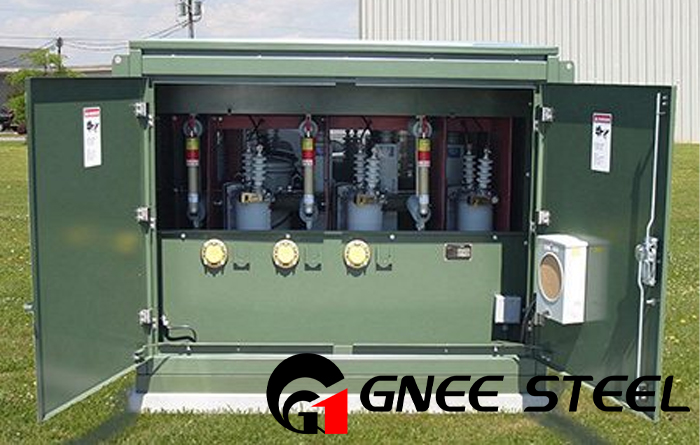

The 167 kVA pad-mounted transformer is constructed using aluminum materials. It is equipped with designated H1A and H1B high-voltage bushings, and three spade-type low-voltage bushings, each furnished with four holes. The spade terminal orientation maintains a 30-degree angle. The low-voltage bushings are arranged from top to bottom as X3, X1, and X2. These transformers are further outfitted with bayonet fuses, ELSP fuses, and a four-position load-break switch. Notably, they feature a five-position tap changer and a DV switch, facilitating a seamless switch between 14.4 kV and 7.2 kV circuit systems.
- Quality System ISO 9001 certified
- Meet ANSI/IEEE or DOE standard
- Fully sealed and insulated; safe and reliable;
- Low loss, low noise, strong overload capacity;
- Can be equipped with load switch, bayonet fuse, current limiting fuse, oil level gauge, pressure gauge, pressure relief valve, drain valve, surge arrestors, etc;
- Cold rolled plate, stainless steel or other materials can be selected for the enclosure;
- Mineral oil or FR3 oil can be used.
