Oil immersed distribution transformers use insulating oil as cooling and insulating medium. The core is made of high quality cold rolled sillcon steel, the oil tank adopts corrugated oil tank without oil conservaor. Vacuum oil injection process is adopted to effectively prevent oxygen and water from penetrating into transformer oilresulting in the decline of insulating oil performance. It is a new generation of energy-saving and environmental protection products.
An oil-immersed transformer, also called Oil filled transformer, is a kind of voltage transformation device utilizing the oil cooling method to reduce the transformer temperature. Unlike the dry type transformer, the body of the Oil-immersed transformer is installed in the welded steel oil tank filled with insulation oil. When an Oil-immersed transformer in operation, the heat of the coil and iron core firstly is transformed into the insulation oil and then to the cooling medium. And according to the capacity sizes, it can be divided into an immersed natural cooling transformer and an immersed forced air cooling transformer.

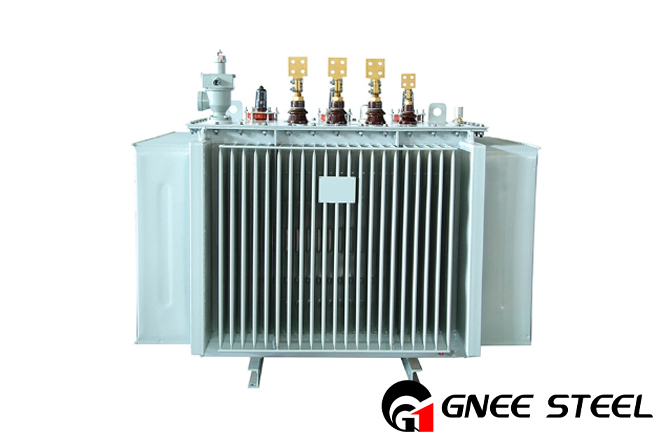

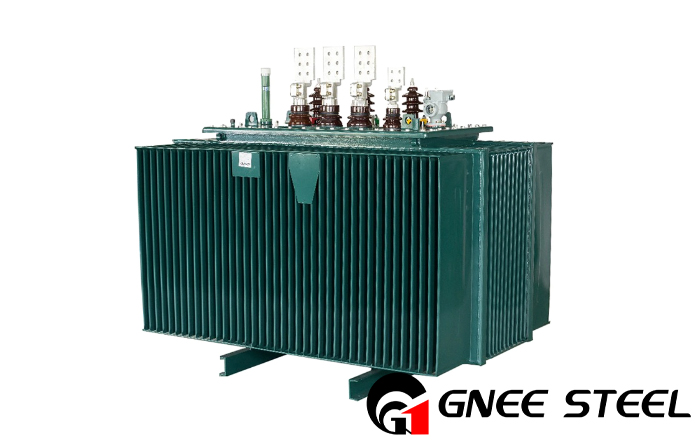

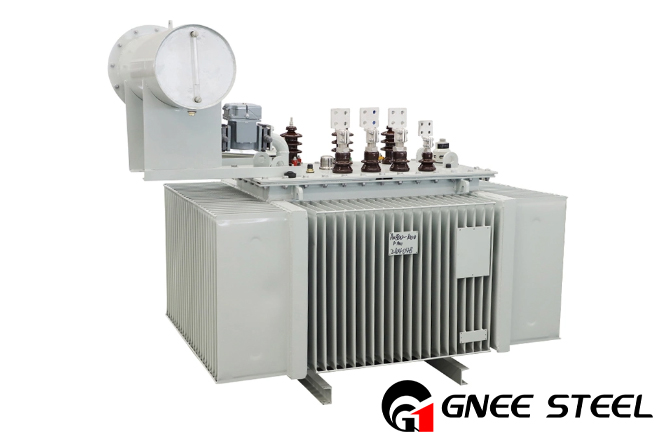

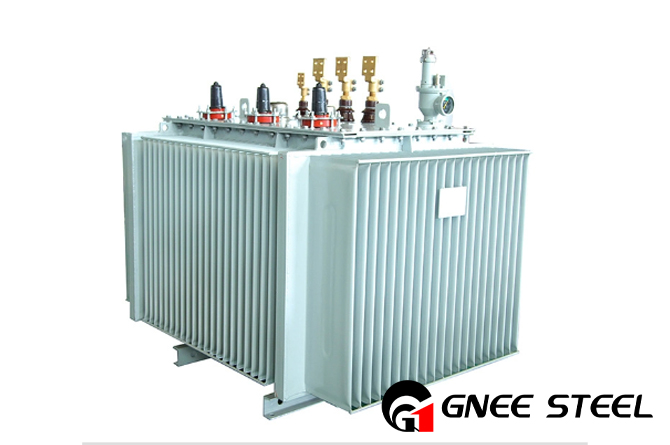

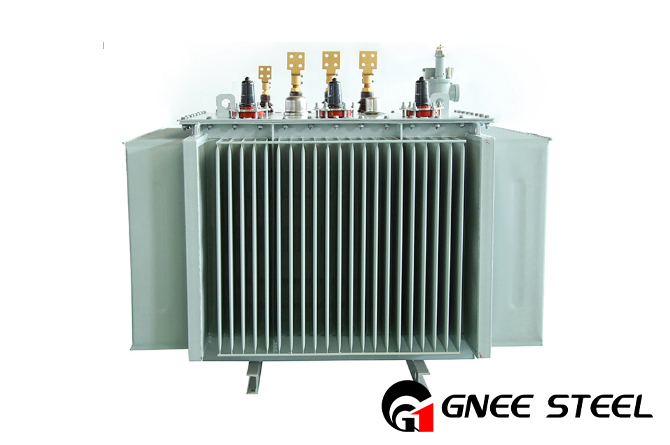

GNEE Steel oil immersed current transformer
Features
1. The coil adopts a low axial short-circuit force structure. When the transformer is short-circuited, it can greatly reduce the axial short-circuit force and greatly improve the ability of withstanding short-circuit.
2. All the bolts and nuts on the cover surface are made of 304 stainless steel, which enhances the rust prevention ability of the transformer.
3. Each sealing rubber ring adopts the best rubber material in China, which greatly prolongs the service life of the sealing rubber ring.
4. The transformer body adopts a high-reliability support structure to ensure reliable compression of the upper and lower parts of the coil. The entire body structure improves the ability of withstanding short-circuited.
5. This not only reduces the no-load loss of the transformer, but also ensures that the core flux is not saturated when the transformer is operating under voltage, so that the third harmonic of the transformer is small.
