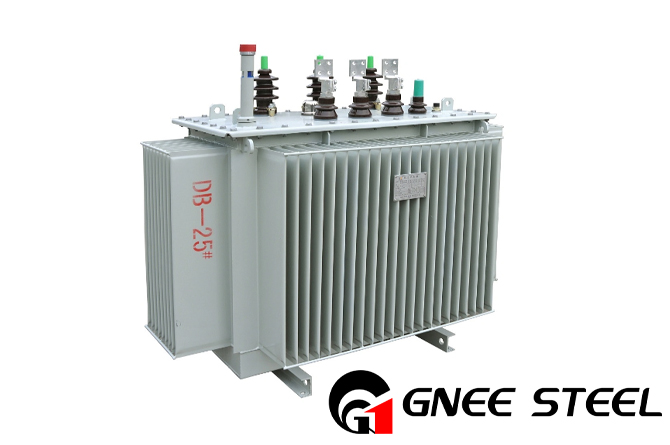

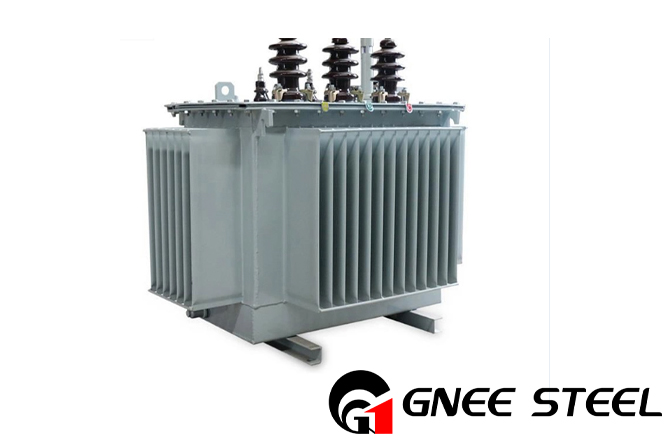

Features of 20kv Series Oil-immersed Distribution Transformer

•Unique Welding Process, No Leakage

Eliminate the high and low pressure risers to reduce welds; the fuel tank wall uses wide-width steel plates to reduce joints; a unique welding process to ensure welding quality.

•Groove Structure

All sealing flanges are grooved to ensure sealing performance.

•Control Leakage

All the oil drain valves of the transformer are made of copper valves, and the radiator uses a vacuum butterfly valve to reduce the leakage of the transformer.

•Low Loss, Low Noise

Adopt domestic and foreign advanced technology and equipment, professional research and development. The core adopts high-performance cold-rolled oriented silicon steel sheet and fully automatic robot lamination machine with small shear burr and low lamination coefficient, which effectively reduces the no-load loss, no-load current and noise of the transformer. The no-load loss is 5% to 15% lower than the manual lamination.

•High Reliability

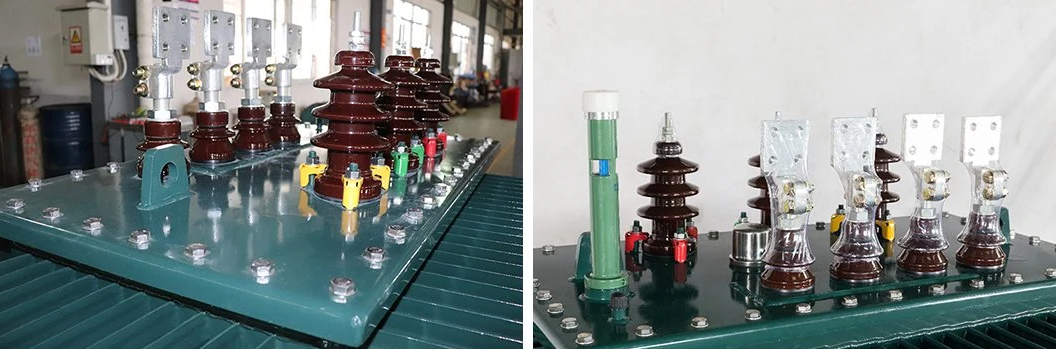

The transformer is equipped with an oil surface thermometer, the top of the fuel tank is equipped with a pressure relief valve with a contact point, the oil level indicator of the oil storage cabinet is an oil level gauge with a contact point, and the high and low pressure casing is an anti-fouling enhanced pure porcelain oil type casing, which can be used for Heavy pollution level environment.

•High Quality Insulated Skeleton Support inside the Coil

The inside of the coil is supported by a high quality insulating skeleton. All coils adopt inner and outer struts, all struts and blocks are chamfered, the electric field is uniform, and the reliability is enhanced. All fasteners on the axial body of the coil are self-locking locknuts, so that the product can withstand long-distance transport bumps without looseness and without the need for a lifting core.
