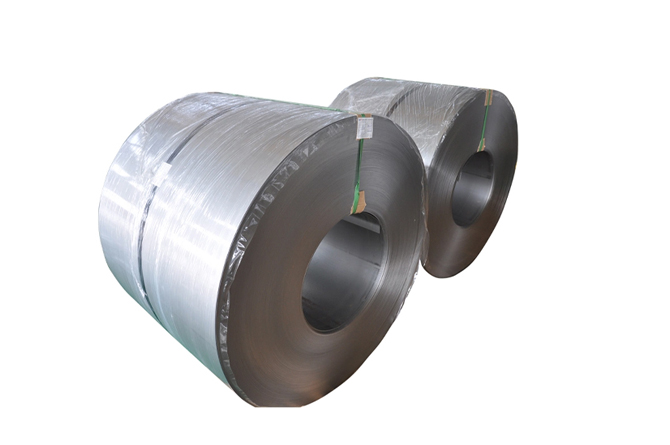

Non Oriented Electrical Steel Details:
| Standard: | GBT2521, IEC404-8-4, JISC2552, ASTMA677M, EN10106 |
| Grade: | B50A470, 50WW800, 35WW270, 50AW800, 50SW800, 350-50-A5, 35A440, 47F370M, M290-50A5, etc. |
| P1.5/50: | 2.3-10w/kg |
| J2500: | 1.49-1.62 (50HZ or 60HZ) |
| Thickness: | 0.35mm/0.5mm/0.65mm |
| Width: | 20mm-1250mm |
| Coils weight: | 0.5-8tons |
| Coils inner diameter: | 508mm/610mm |
| Packing: | waterproof paper and steel strip, or according to request |
| Grade | Yeild Strength (N/mm2) |
Ultra-Tension Strength (N/mm2) |
Ductility (%) | Hardness (HV1) |
| 35ww230 | 430 | 560 | 20.0 | 225 |
| 35ww250 | 415 | 550 | 20.5 | 220 |
| 35ww300 | 360 | 480 | 21.5 | 195 |
| 50ww350 | 350 | 475 | 26.5 | 190 |
| 50ww470 | 295 | 425 | 35 | 160 |
| 50ww600 | 280 | 410 | 37 | 140 |
| 50ww800 | 285 | 405 | 38.5 | 135 |
| Grade | Thickness mm | Density kg/dm3 | Max. core loss P1.5/50 (W/kg) | Min. Magnetic polarization J5000(T) |
| 35ww230 | 0.35 | 7.60 | 2.10 | 1.62 |
| 35ww250 | 0.35 | 7.60 | 2.30 | 1.62 |
| 35ww300 | 0.35 | 7.65 | 2.70 | 1.62 |
| 50ww350 | 0.50 | 7.65 | 3.10 | 1.62 |
| 50ww470 | 0.50 | 7.70 | 3.30 | 1.70 |
| 50ww600 | 0.50 | 7.75 | 4.20 | 1.67 |
| 50ww800 | 0.50 | 7.80 | 5.80 | 1.70 |
