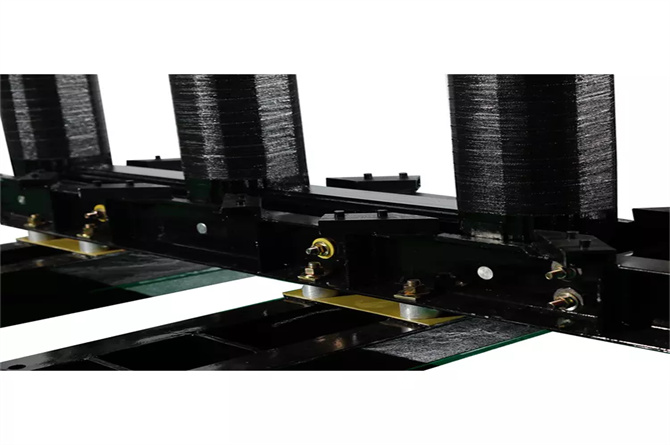

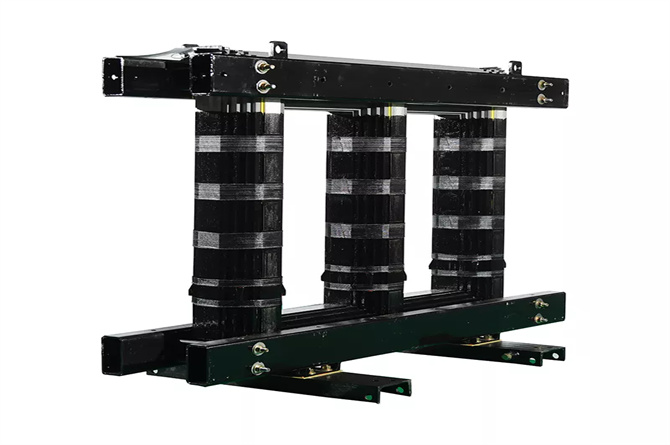

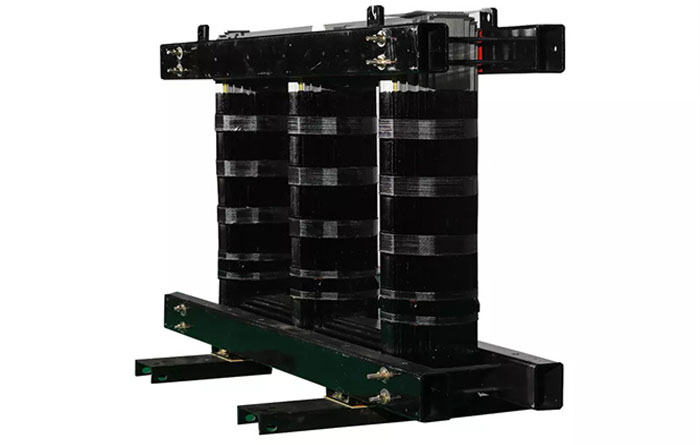

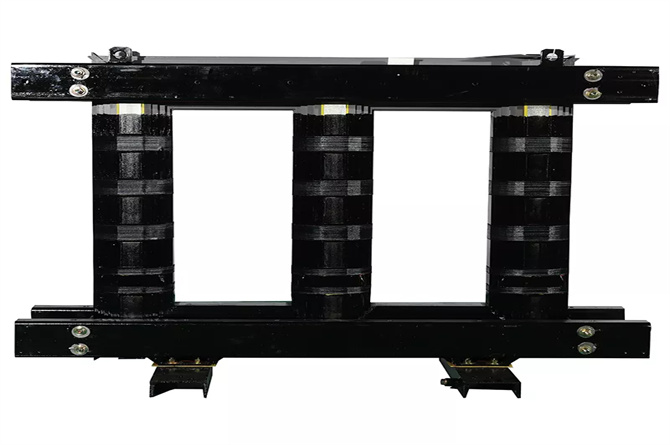

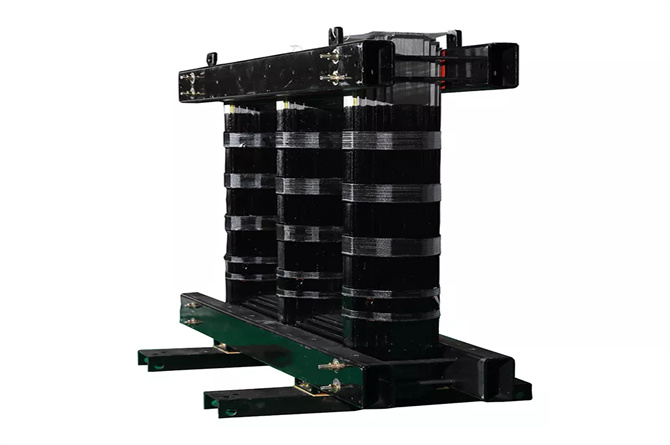

High Quality Y Pattern Iron Core Modern Craft Iron Core

Model	DKSC-500-150/10
Low-voltage connection	Y pattern
Product drawing number	5SY.641.500-200.10.3
Total stack thickness	One hundred and sixty-seven millimeters
Low-voltage turns	Twenty-six turns
Total weight of iron core	Seven hundred and eighty-three kilos
Low Voltage	Four hundred volts
No-load loss	Less than nine hundred and fifty watts

Does a transformer change the current?
Transformers use electromagnetic induction to change voltage and current. This change, called transformer action, describes how the transformer changes the AC signal from its primary component to its secondary component (as shown in the equation above). Current enters with voltage.

Why use lamination in transformers?
Why are transformer cores laminated? Transformer cores need to be laminated to reduce eddy currents generated by the induced voltage through the core, thereby reducing heat loss throughout the core. Therefore, the transformer core is laminated to minimize the eddy current flowing through it.
