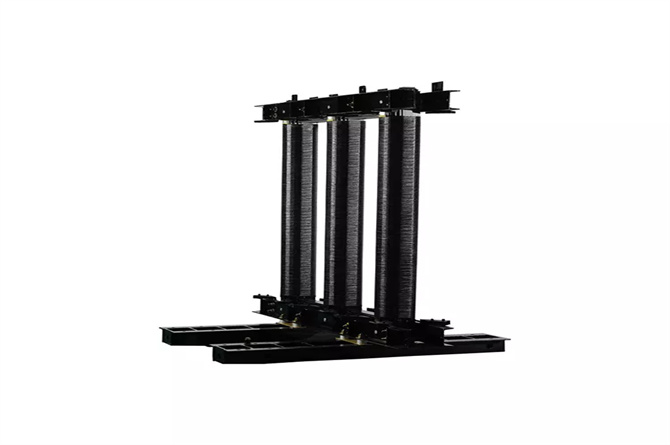

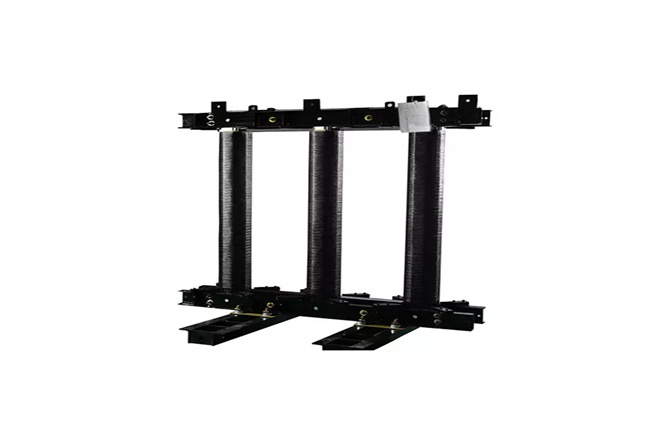

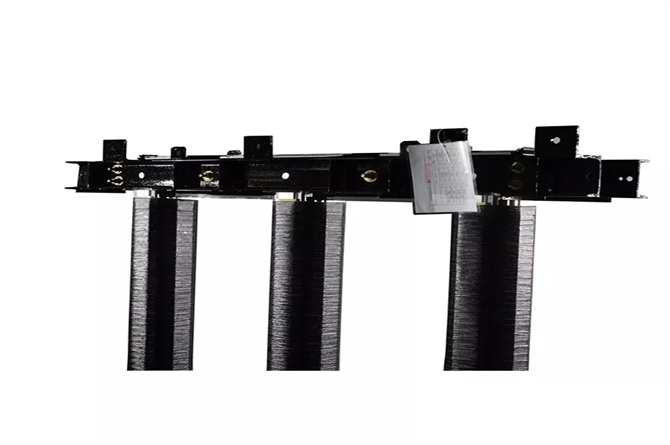

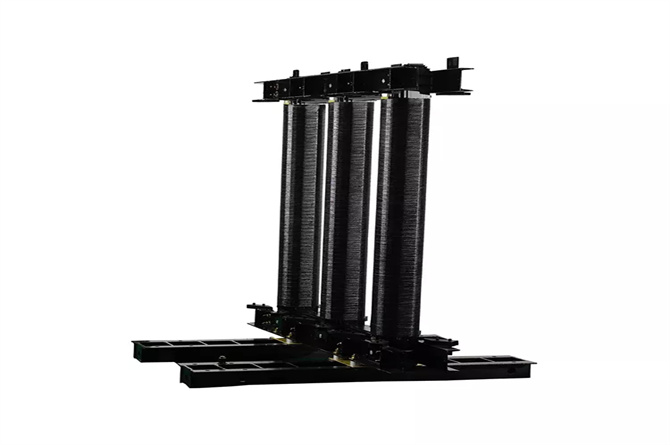

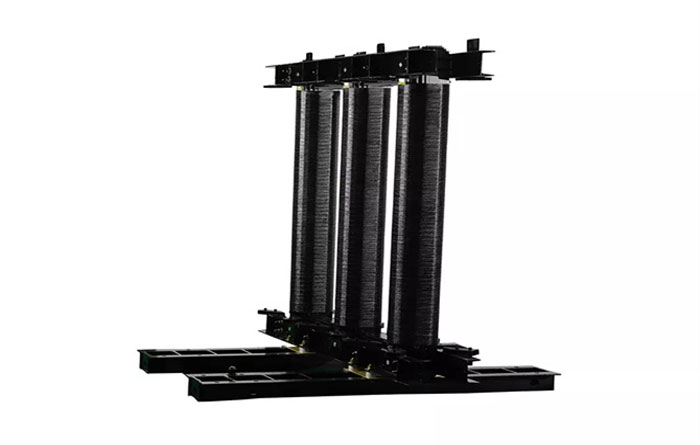

High Performance Y Pattern Transformator Iron Core

The use of cold-rolled steel sheets has become popular in power transformers, which significantly reduces its weight and external dimensions when the capacity of the transformer is the same compared to the hot-rolled steel sheets used in the past. This is because cold-rolled steel sheets have a high magnetic permeability when magnetized in the direction of rolling.



Model	DKSC-1200-500/10
Low-voltage connection	Y pattern
Product drawing number	5SY.641.1200-500.10.2
Total stack thickness	Two hundred and sixteen millimeters
Low-voltage turns	Seventeen turns
Total weight of iron core	One thond, four hundred and seventy-three kilos
Low Voltage	Four hundred volts
No-load loss	Less than one thond, seven hundred watts

FAQ
Q: Do you provide samples? Free of charge or extra?
A: The cost of samples is based on the value, shipping cost is necessary.
Q: How can we guarantee quality?
A:We can provide pre-production sample before mass production and final Inspection before shipment.
Q: Will you delivery the goods on time?
A: Yes,we promise to deliver on time,indemnity clause in contract terms will work if we couldn't.
