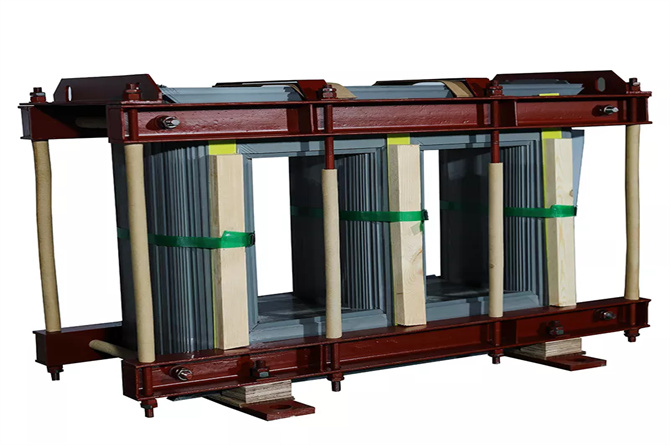

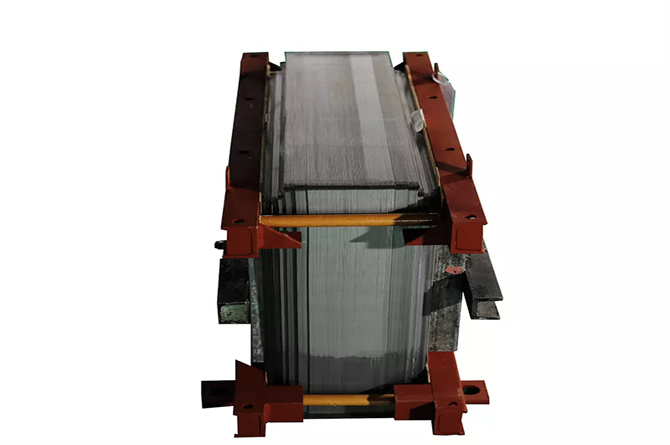

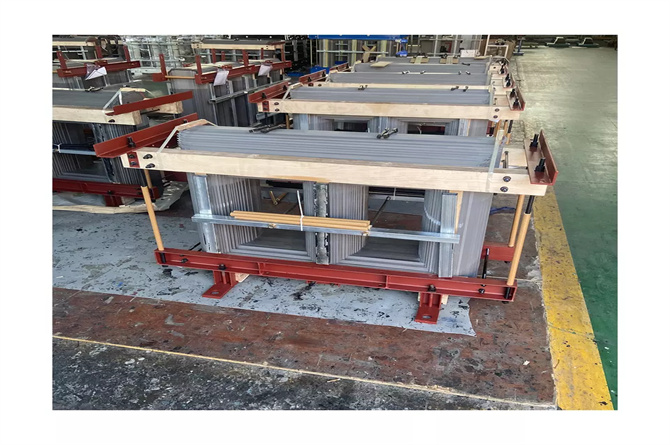

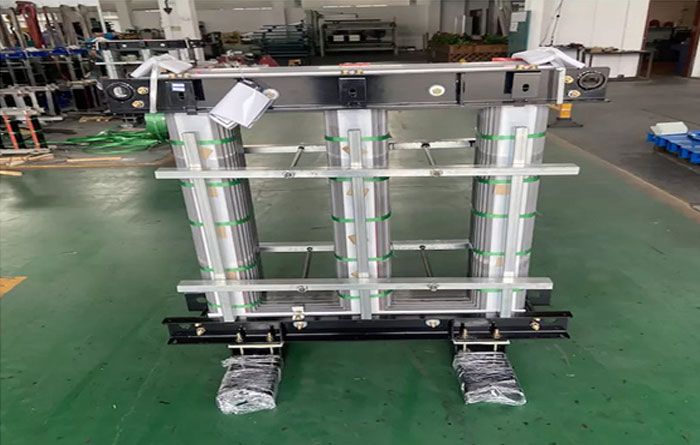

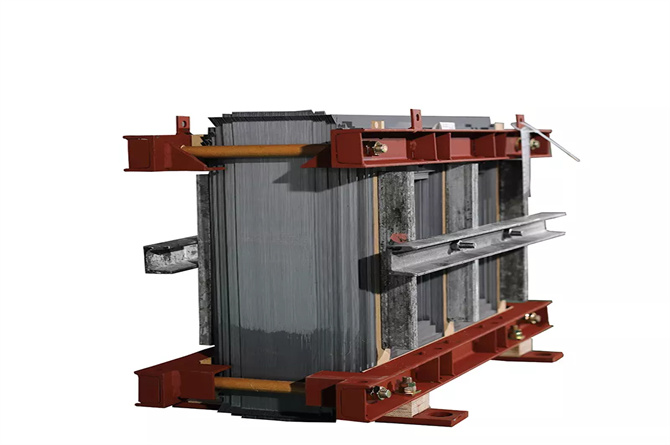

Transformer Iron Core silicon steel High Quality Iron Core

* Material
We use high quality CRGO steels with low iron-loss and high permeability in thickness of 0.23mm, 0.27mm, and 0.3mm.
* Characteristic
Precise shearing machines ensure the laminations with accurate dimensions and small burrs. The materials magnecti properties are recover by annealing in nitrogen furnace. Single phase and three phase cores are available.
* Application
Stacked core is widely used in 50Hz transformers, current transformers, reactors, welder and power distribution transformers.
* Performance
We can choose relevant materials to satisfy customers’ demand of different quality


Rated Capacity(KVA)	NO Load loss(W)	Load Loss	No Load Current	Impedance Voltage
30	80	600/63	0.34	4
50	100	870/910	0.28	4
63	110	1040/1090	0.26	4
80	130	1250/1310	0.25	4
100	150	1500/1580	0.24	4
125	170	1800/1890	0.23	4
160	200	2200/2310	0.21	4
200	240	2600/2730	0.2	4
250	290	3050/3200	0.19	4
315	340	3650/3830	0.18	4
400	410	4300/4520	0.17	4
500	480	5150/5410	0.15	4
630	570	6200/6510	0.14	4.5
800	700	7500/7870	0.13	4.5
1000	830	10300/10800	0.12	4.5
1250	970	12000/12600	0.11	4.5

FAQ
Q: Do you provide samples? Free of charge or extra?
A: The cost of samples is based on the value, shipping cost is necessary.
Q: How can we guarantee quality?
A:We can provide pre-production sample before mass production and final Inspection before shipment.
Q: Will you delivery the goods on time?
A: Yes,we promise to deliver on time,indemnity clause in contract terms will work if we couldn't.
