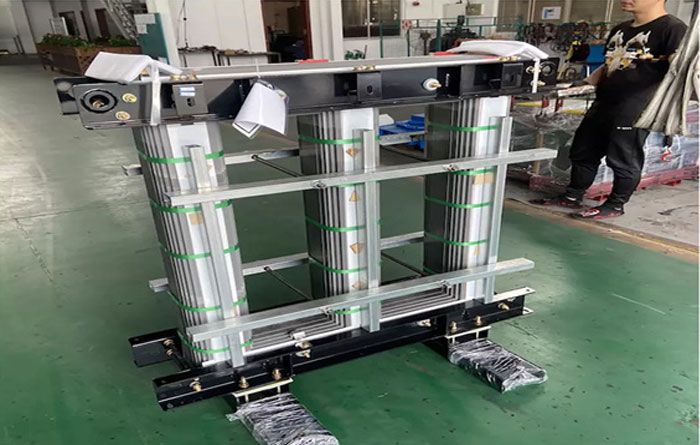

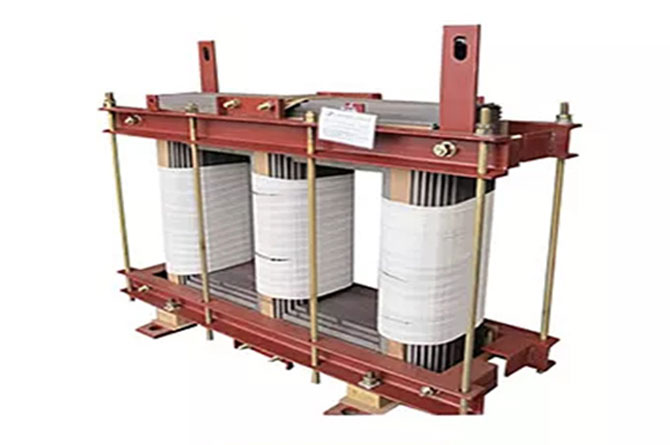

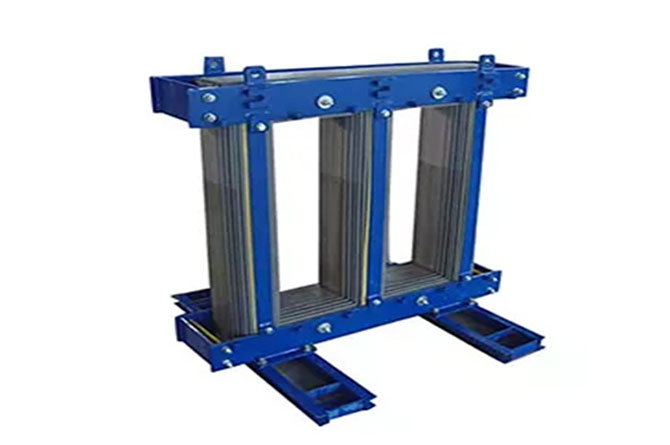

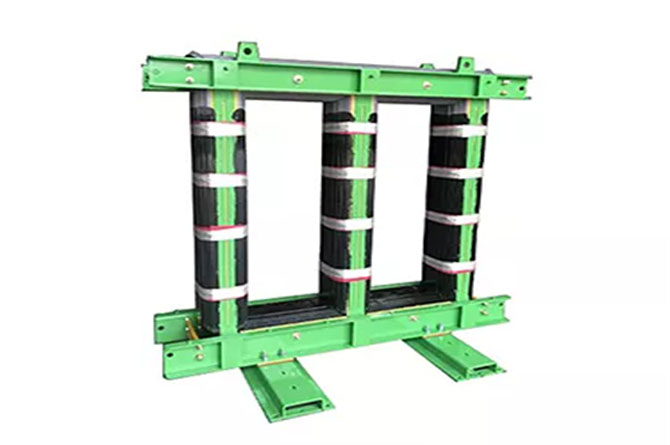

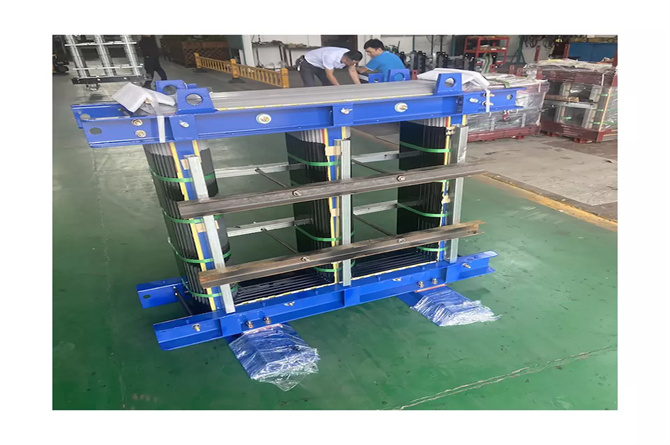

Good Price Silicon Steel Crgo Lamination Transformer Iron Core
Commonly used transformer cores are generally made of silicon steel sheets. Silicon steel is a kind of silicon (silicon also known as silicon) steel, its silicon content is 0.8~4.8%.
The iron core of the transformer made of silicon steel is because silicon steel itself is a magnetic substance with strong magnetic permeability, and in the energized coil, it can produce a large magnetic induction strength, which can reduce the volume of the transformer
The transformer core is composed of silicon steel sheets, in order to reduce the heat loss in the core, the core is stacked from silicon steel sheets with a thickness of 0.23-0.5mm.
technical parameter
Technical Data
Model
S9/S11
Low-voltage turns
40 turns
Low Voltage
400 volts
Low-voltage connection
Y pattern
Total stack thickness
200 and 82 mm
Total weight of iron core
1000, 491 kg
No-load loss
Less than 1000 and 5700 Watts
* Characteristic
Precise shearing machines ensure the laminations with accurate dimensions and small burrs. The materials magnecti properties are recover by annealing in nitrogen furnace. Single phase and three phase cores are available.
* Application
Stacked core is widely used in 50Hz transformers, current transformers, reactors, welder and power distribution transformers.
* Performance
We can choose relevant materials to satisfy customers’ demand of different quality
