technical parameter
Technical Data
Application

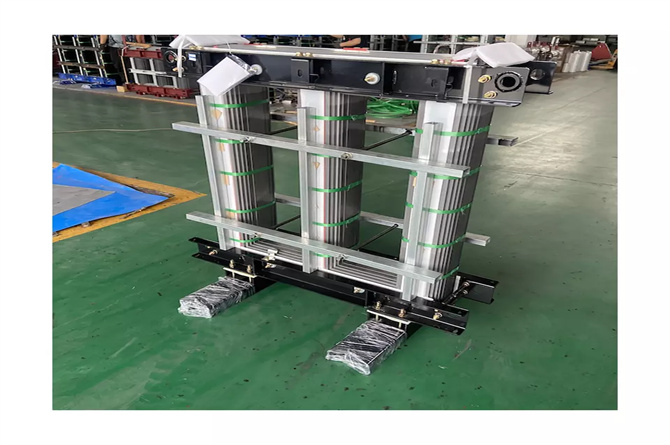

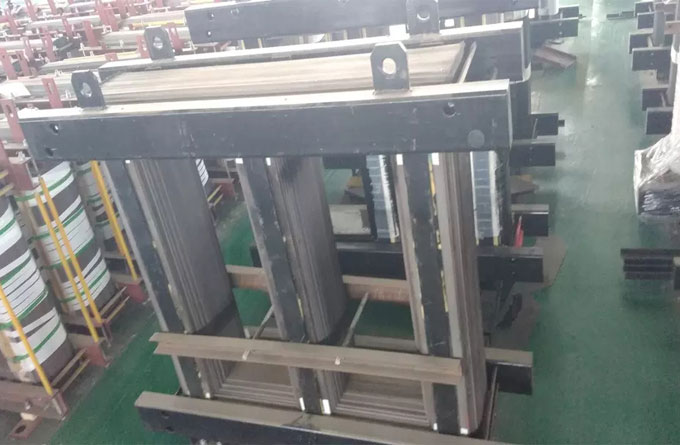

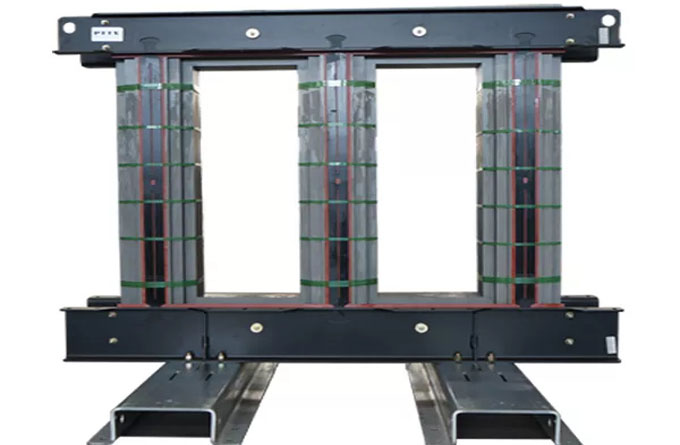

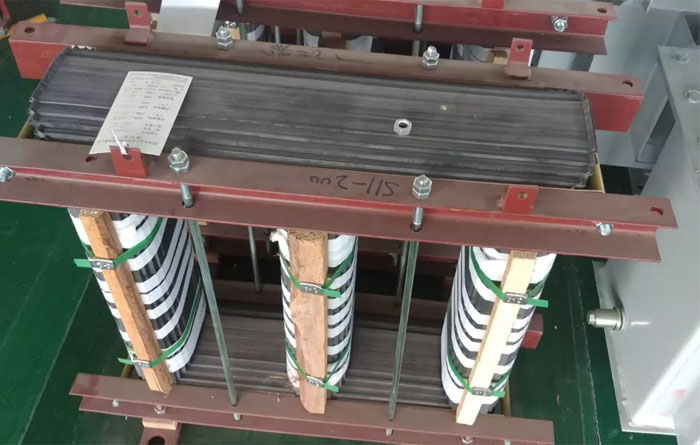

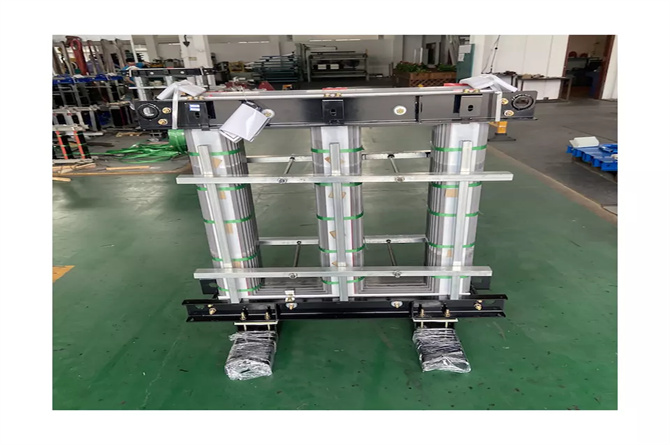

Stacked core is widely used in 50Hz transformers, current transformers, reactors, welder and power distribution transformers.
Performance
We can choose relevant materials to satisfy customers’ demand of different quality
| Rated Capacity(KVA) |
NO Load loss(W) |
Load Loss |
No Load Current |
Impedance Voltage |
| 30 |
80 |
600/63 |
0.34 |
4 |
| 50 |
100 |
870/910 |
0.28 |
4 |
| 63 |
110 |
1040/1090 |
0.26 |
4 |
| 80 |
130 |
1250/1310 |
0.25 |
4 |
| 100 |
150 |
1500/1580 |
0.24 |
4 |
| 125 |
170 |
1800/1890 |
0.23 |
4 |
| 160 |
200 |
2200/2310 |
0.21 |
4 |
| 200 |
240 |
2600/2730 |
0.2 |
4 |
| 250 |
290 |
3050/3200 |
0.19 |
4 |
| 315 |
340 |
3650/3830 |
0.18 |
4 |
| 400 |
410 |
4300/4520 |
0.17 |
4 |
| 500 |
480 |
5150/5410 |
0.15 |
4 |
| 630 |
570 |
6200/6510 |
0.14 |
4.5 |
| 800 |
700 |
7500/7870 |
0.13 |
4.5 |
| 1000 |
830 |
10300/10800 |
0.12 |
4.5 |
| 1250 |
970 |
12000/12600 |
0.11 |
4.5 |
Because of their good magnetoelectric properties, easy mass production, low price, and low mechanical stress, they are widely used in the power electronics industry. Such as power transformers, distribution transformers, current transformers and other iron cores.
FAQ
1.What's the order process?
1)Inquiry---provide us all clear requirements (total qty and package details).
2)Quotation---official quotation from with all clear specifications from our professional team.
3)Marking Sample --- confirm all quotation details and the final sample.
4)Production---mass production.
5)Shipping---by sea or by air.
2.What terms of payment you use?
As for the payment terms,it depends on the total amount.
3.How do you ship the products?
By Sea ,By Air ,By courier, TNT , DHL, Fedex, UPS Etc. It is up to you .
4.What is the average delivery time?
